Security, Compliance, and Governance

Auteur: Abdulla Bagishev
Jaar: 2025
Onderwerp: AWS Security, Compliance en Governance

Personal Note These are my personal notes as part of my self-study in AWS networking, based on the book AWS® Certified Advanced Networking Study Guide (Second Edition)—specifically the security chapters. Although this chapter focuses on AWS-specific security components, many of the concepts discussed apply broadly to general security principles outside of the AWS context.

Security compliance is a critical aspect of cloud engineering. It is important to meet requirements at multiple levels:

  • Internal compliance within your organization.
  • Legal and regulatory compliance in the countries where your organization or customers operate.
  • Industry-specific regulations, such as those in finance and healthcare.

Compliance Automation

Automation can be leveraged for compliance checking by using AWS-provided tools and services to enforce security policies. Examples include:

  • AWS Config: Monitors resource configurations, tracks changes, and enforces compliance with security standards (e.g., HIPAA, PCI DSS, GDPR).
  • AWS CloudFormation: Enables secure, repeatable, and compliant resource deployment.
  • AWS Security and Compliance Services:
    • Audit Manager, Detective, Inspector, GuardDuty, CloudTrail, Security Hub, CloudWatch – Help track and analyze network activity.
  • AWS Identity and Access Management (IAM):
    • IAM securely manages access to AWS resources, enforcing the principle of least privilege to minimize security risks.
  • Amazon Virtual Private Cloud (VPC):
    • Allows for the definition and control of logically isolated cloud-based networks.
  • AWS Firewall Manager:
    • Provides centralized firewall rule management across multiple AWS accounts and VPCs, enforcing security policies.
  • AWS Security Hub:
    • A unified dashboard offering visibility into security alerts and compliance issues, integrating data from GuardDuty, AWS Config, and other AWS services.
  • Amazon Inspector:
    • Performs automated security assessments to detect software vulnerabilities and provide recommendations.

Threat Models

Threat models help identify and mitigate potential security threats to networks, applications, and services.

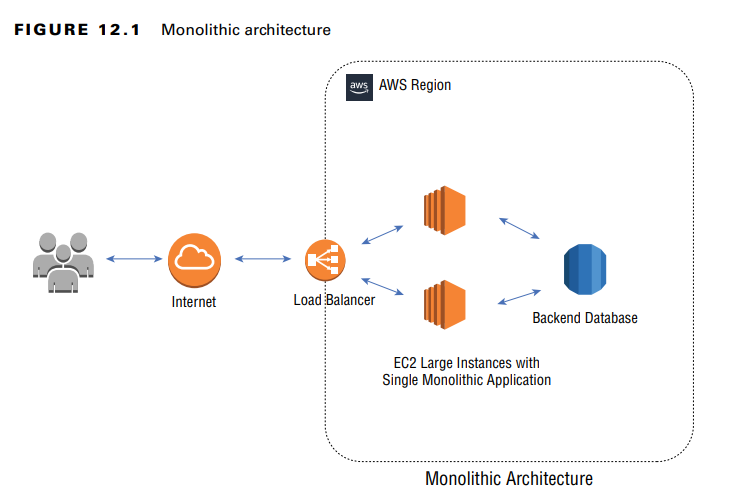

Monolithic Architecture

Monolithic Architecture

A monolithic architecture consists of tightly coupled application components that often run on the same EC2 instance or server.

Security Considerations:

  • Focus on OS vulnerabilities, privilege escalations, middleware security, and database security.
  • Common threats: Denial of Service (DoS), SQL injection, cross-site scripting (XSS), and privilege escalation attacks.

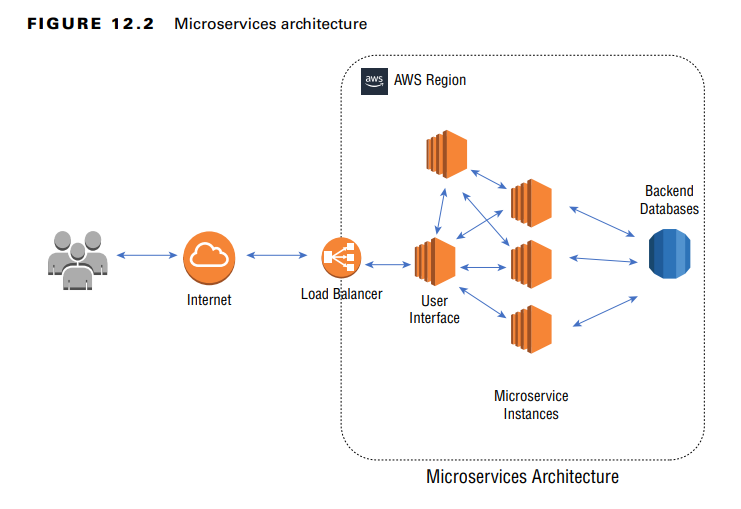

Microservices Architecture

Microservices Architecture

In a microservices architecture, applications are broken into smaller, discrete components that communicate via API calls.

Security Considerations:

  • The service mesh managing communication between microservices must be secured.
  • API vulnerabilities need to be assessed and mitigated.

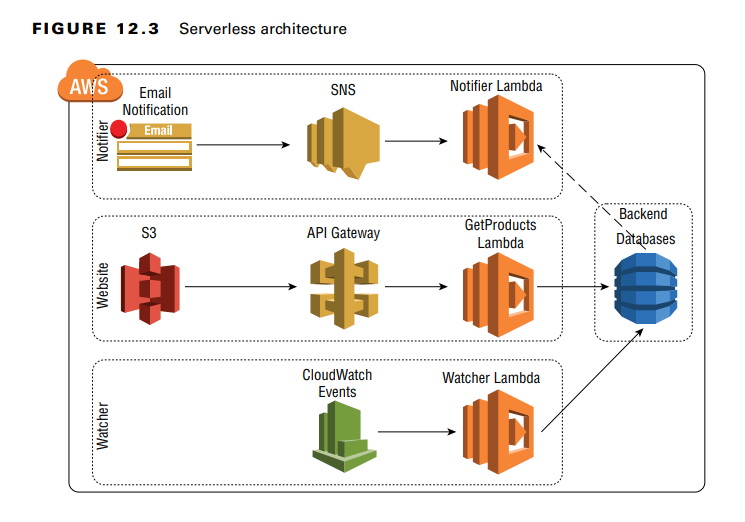

Serverless Architecture

Serverless Architecture

Serverless applications consist of individual functions triggered by specific events.

Security Considerations:

  • Threat models focus on insecure function configurations, inadequate access controls, limited application visibility, and API security.

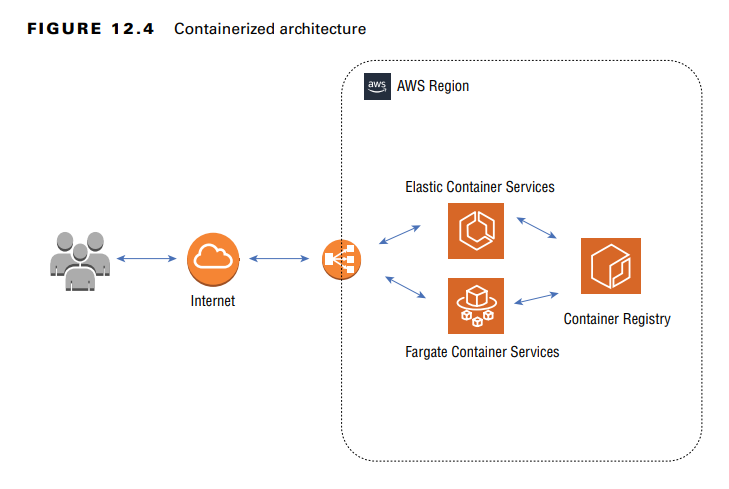

Containerized Architecture

Containerized Architecture

Applications are broken into containerized components managed by orchestration platforms like Kubernetes.

Security Considerations:

  • Focus on container image security, Kubernetes cluster security, and network connections between containers.

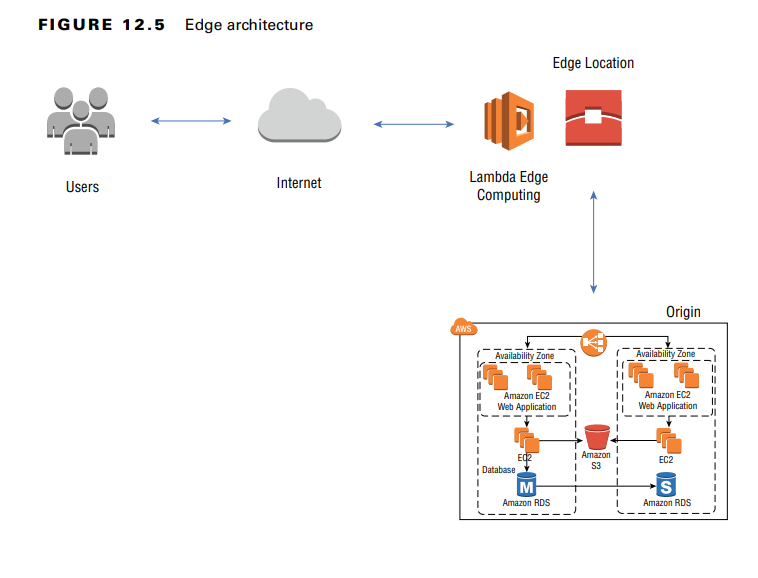

Edge Computing Architecture

Edge Computing Architecture

Applications run on compute resources located at the edge of the network, closer to end users.

Security Considerations:

  • Threat models must address Distributed Denial of Service (DDoS) attacks, data exfiltration, and unauthorized access to edge computing resources.

Common Security threats

Cloud computing has many of the same threats you face in your on-premise:

  • Account hijacking: attacker gains access to an authorized user’s acount. This can be achieved with phishing attacks, brute-force attacks, man-in-the-middle exploits, and other methods.
  • Advanced persistent threats: targeted attacks to steal data or disrupt operations on a long term. Advanced persistent threats are typically carried out by sophisticated attackers.
  • Cryptojacking: attackers use the computing resources of the victim’s infrastructure to mine cryptocurrency.
  • Data breaches: company’s data is accessed, stolen or exposed without your permission or authorization.
  • Denial-of-service: disrupting the normal functioning of a network, server or website by overwhelming it with traffic or other malicious activity.
  • Insider threats: an employee or other authorized user either intentionally or unintenionally causes harm to the system.
  • Malware and viruses: programs designed to cause harm to systems and networks. Can be spread through email attachments, malicious websites, etc.
  • Misconfigured security controls: create openings for attacks to your AWS infrastructure. Misconfigured security include: improperly configured access controls, network security groups, improperly configured encryption settings
  • Vulnerable third-party Applications: vulnerabilities in third party applications make your application vulberable as well
  • Unauthorized access: attacker gains access to your operations sensitive data and systems without proper permission.

AWS solutions: IAM GuardDuty, Inspector, Web Application Firewall (WAF) and many others.

Securing Application Flows

Network Security in AWS

Network security ensures that traffic flowing through a network is protected from tampering and theft.

Securing Traffic in Transit: SSL/TLS

  • The Secure Sockets Layer (SSL) / Transport Layer Security (TLS) protocols are used to encrypt data in transit over the Internet.
  • AWS services that support SSL/TLS encryption for application traffic:
    • Elastic Load Balancing (ELB)
    • CloudFront
    • API Gateway
  • AWS CloudFront Edge locations include an SSL security certificate bound to the cloudfront.net domain, which can be enabled in the CloudFront distribution settings.

AWS Virtual Private Cloud (VPC) Security

An AWS VPC (Virtual Private Cloud) is an isolated network that allows organizations to enforce security controls.

Key VPC Security Features

  1. Security Groups (SGs)

    • Acts as a virtual firewall for EC2 instances.
    • Controls inbound and outbound traffic.
    • Rules define allowed IP addresses, protocols, and ports.

  2. Network Access Control Lists (NACLs)

    • Stateless network filters applied at the subnet level.
    • Filters inbound and outbound traffic.
    • Can block specific IPs or protocols for granular control.

  3. AWS Web Application Firewall (WAF)

    • Protects against SQL injection, cross-site scripting (XSS), and other web attacks.
    • Customizable rules to block specific traffic patterns.

  4. Identity and Access Management (IAM)

    • Core AWS service for controlling access to AWS resources.
    • Administrators define users, groups, roles, and permissions.

Data Encryption & Key Management

AWS provides multiple encryption services to protect data at rest and in transit.

  • Encryption Services:
    • Amazon EBS Encryption – Encrypts data stored on Elastic Block Store volumes.
    • Amazon S3 Encryption – Encrypts objects stored in Amazon S3.
    • AWS Key Management Service (KMS) – Manages encryption keys for securing data.
    • AWS Certificate Manager (ACM) – Automates the creation, storage, and renewal of SSL/TLS certificates.

AWS Security & Compliance Tools

  1. Application Security Services

    • GuardDuty – Detects malicious activity and unauthorized access.
    • Inspector – Scans workloads for security vulnerabilities.
    • Lambda – Can be used to deploy secure serverless applications.

  2. Logging & Monitoring Services

    • AWS CloudTrail – Tracks user activity and API calls.
    • AWS Config – Monitors resource configurations and compliance.
    • Amazon CloudWatch – Provides real-time monitoring, alarms, and event logging.

Securing Inbound Traffic Flows

Web Application Firewall (WAF)

AWS Web Application Firewall (WAF) is designed to protect web applications from common web exploits and attacks. It acts as a security layer between the Internet and AWS-hosted web applications, filtering and monitoring incoming and outgoing traffic.

Key Features & Protections

  • Shields applications from SQL injection, HTTP header modifications, cross-site scripting (XSS), and DDoS attacks.
  • Integrated with CloudFront, Application Load Balancer (ALB), and API Gateway, allowing protection across different AWS services.
  • Offers preconfigured rules that AWS updates regularly to adapt to emerging threats.
  • Supports custom rules to filter requests based on:
    • Requesting URL, query parameters, and request body.
    • Source or destination IP addresses, geographic locations, and port numbers.

Traffic Monitoring & Logging

  • Provides detailed logging and traffic analysis to help identify patterns and detect suspicious activity.
  • Enables administrators to fine-tune security policies based on real-time data.

AWS Network Firewall Overview

The AWS Network Firewall is a managed network security service that provides traffic filtering and monitoring at the VPC level. It acts as a perimeter firewall that can be deployed inside a VPC or in front of multiple VPCs.

AWS Network Firewall operates at two levels:

  1. Stateless Firewall – Inspects each packet individually, without tracking previous packets.
  2. Stateful Firewall – Tracks entire sessions, allowing more advanced security analysis.

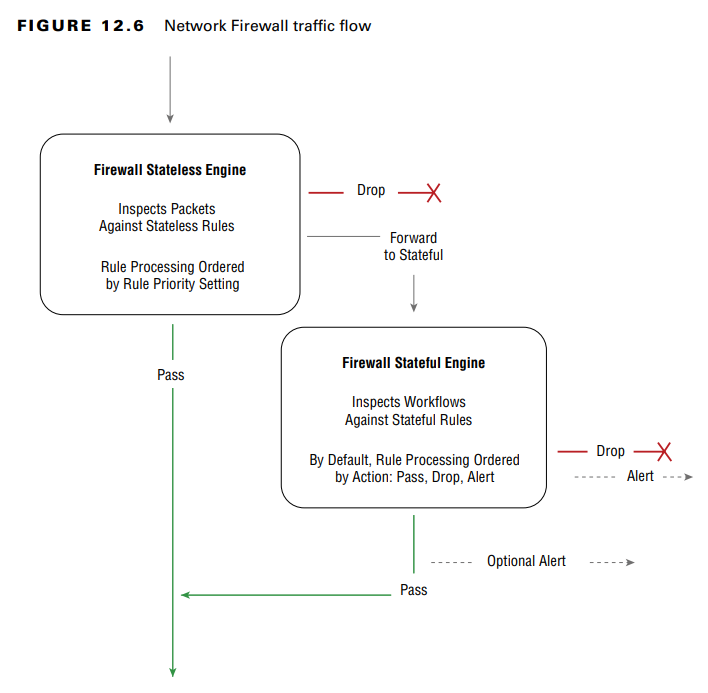

alt text

This diagram explains how AWS Network Firewall processes network traffic. Here’s how it works:

  1. Traffic first enters the Stateless Firewall Engine

    • This firewall inspects each packet in isolation without considering whether it belongs to an existing session.
    • The stateless engine evaluates traffic based on priority rules you define.
    • If a packet matches a rule that blocks it, it is dropped immediately.
    • If a packet is allowed, it passes through the firewall (green line).
    • If the stateless firewall does not make a final decision, it forwards the packet to the stateful firewall for deeper inspection.

  2. Traffic forwarded to the Stateful Firewall Engine

    • The stateful firewall tracks sessions and evaluates the flow as a whole, rather than inspecting individual packets separately.
    • It uses a default rule order:
      • Pass (Allow)
      • Drop (Block)
      • Alert (Log the attempt but do not block)
    • If the packet is allowed, it continues its path.
    • If the packet is blocked, it is dropped immediately.
    • If an alert rule applies, the packet may still be allowed but logged for further analysis.

Securing Inbound Traffic Flows

AWS Shield – DDoS Protection

AWS Shield is a managed Distributed Denial of Service (DDoS) protection service that defends applications against volumetric, protocol, and application-layer attacks.

Shield Tiers

  1. AWS Shield Standard

    • Automatically enabled (Free Service)
    • Protects against common and frequent network-layer and transport-layer DDoS attacks.

  2. AWS Shield Advanced (Paid Service)

    • Provides enhanced protection for Internet-facing applications on EC2, ELB, CloudFront, Global Accelerator, and Route 53.
    • Includes real-time visibility, automated mitigation, and 24/7 support from the AWS DDoS Response Team (DRT).
    • Requires Enterprise or Business AWS Support Plan.

AWS Shield integrates with Elastic Load Balancers, CloudFront, Global Accelerator, EC2, and Route 53 to mitigate DDoS threats before they impact application availability.

Security Groups – Instance-Level Security

  • Security Groups (SGs) act as virtual firewalls that control inbound and outbound traffic at the instance level within a VPC.
  • Stateful – If inbound traffic is allowed, the response traffic is automatically permitted.
  • Configured to allow traffic based on:
    • IP addresses
    • Protocols (TCP, UDP, etc.)
    • Port numbers

Common Security Group Configurations

  • Inbound Security Group:
    • Allows web (HTTP/HTTPS) and SSH access to servers in a public subnet.
  • Outbound Security Group:
    • Allows SSL (HTTPS) and SSH traffic to exit the VPC to the Internet.

Network Access Control Lists (NACLs) – Subnet-Level Security

  • NACLs operate at the subnet level to control inbound and outbound traffic.
  • Stateless – Each rule applies independently to inbound and outbound traffic, meaning separate rules must be defined for each direction.
  • Can allow or deny traffic based on:
    • Source and destination IP addresses
    • Port numbers

Common NACL Configurations

  • Inbound NACL:
    • Allows HTTP/HTTPS and SSH access to public-facing servers.
  • Outbound NACL:
    • Allows SSL (HTTPS) and SSH traffic to exit the VPC to the Internet.

To enforce NACL rules, they must be associated with a subnet in the VPC.

Key Differences: Security Groups vs. NACLs

Feature Security Groups NACLs
Level Instance level Subnet level
Statefulness Stateful (Automatically allows return traffic) Stateless (Inbound & outbound rules must be explicitly defined)
Default Behavior Denies all inbound, allows all outbound Allows all inbound and outbound by default
Use Case Controls access to individual EC2 instances Controls access to entire subnets

Securing Outbound Traffic Flows

Securing outbound traffic in AWS is crucial for compliance, data protection, and threat prevention. Outbound traffic filtering helps prevent unauthorized data transfers, malware infections, and security breaches. Many compliance regulations also require organizations to monitor and control outbound traffic to prevent data loss and unauthorized access.

Best Practices for Securing Outbound Traffic

  1. Network Segmentation

    • Isolates sensitive data to restrict and control outbound flows.
    • Reduces risk of unauthorized access or data exfiltration.

  2. Network Access Control Lists (NACLs)

    • Controls outbound traffic at the subnet level by allowing or denying access based on IP addresses, protocols, and ports.
    • Unlike security groups, NACLs are stateless, meaning explicit rules must be set for both inbound and outbound traffic.

  3. Proxy Servers

    • Acts as an intermediary between client devices and external resources.
    • Filters and inspects traffic for malicious content before it leaves the VPC.
    • Helps enforce security policies and logs all outgoing requests.

  4. Route 53 DNS Resolvers

    • AWS-managed DNS service that controls outbound DNS queries.
    • Blocks traffic to known malicious domains and ensures queries go only to trusted domains.

  5. AWS PrivateLink (VPC Endpoint Services)

    • Prevents outbound traffic from exposing data to the public Internet.
    • Provides private access to AWS services within the AWS network instead of routing through the Internet.

  6. Gateway Load Balancers

    • Used to filter, inspect, and distribute outbound traffic securely.
    • Supports third-party security appliances for intrusion detection, SSL/TLS encryption, and access control policies.

  7. AWS Virtual Private Network (VPN)

    • Encrypts outbound traffic between the VPC and remote endpoints.
    • Ensures data remains protected while traveling over the Internet.
    • Prevents unauthorized access to outbound traffic flows.

  8. AWS Network Firewall

    • Filters and inspects outbound traffic using stateful rules.
    • Can block traffic from known malicious sources and filter based on IP addresses, ports, protocols, and geo-locations.

  9. Monitoring & Logging Outbound Traffic

    • Amazon VPC Flow Logs track all outbound traffic activity.
    • Helps detect unauthorized access or suspicious activity.
    • Logs can be integrated with AWS Security Hub and SIEM tools for analysis.

Securing Inter-VPC Traffic

Securing inter-VPC traffic within an AWS account or across multiple accounts requires network-level security measures (like security groups and NACLs) and application-level security measures (like VPC endpoint policies and PrivateLink). Implementing layered security controls helps ensure that traffic between VPCs remains protected from unauthorized access and potential threats.

Key Security Components for Inter-VPC Traffic

1. Network Access Control Lists (NACLs)

  • Stateless firewall that controls traffic at the subnet level.
  • Used to allow or deny traffic between VPCs based on:
    • Source & destination IP addresses
    • Port numbers
    • Protocols (TCP, UDP, ICMP, etc.)
  • Can be implemented within the same account or across multiple AWS accounts to restrict inter-VPC traffic.

2. VPC Endpoint Policies

  • VPC endpoints allow private connections between a VPC and AWS services without requiring an Internet gateway, NAT device, VPN, or AWS Direct Connect.
  • VPC endpoint policies define access control rules for who can access the VPC endpoint, ensuring:
    • Only authorized services or accounts can connect.
    • Unwanted or external traffic is blocked from reaching the endpoint.
  • Essential for controlling inter-VPC traffic across multiple accounts securely.

3. Security Groups

  • Stateful firewalls that filter inbound and outbound traffic at the instance level.
  • Can be used to allow or block traffic between VPCs within the same AWS account or across accounts.
  • Security groups allow:
    • Defining trusted IP ranges for inter-VPC communication.
    • Restricting access from known malicious sources.
    • Allowing traffic only on specific ports and protocols.

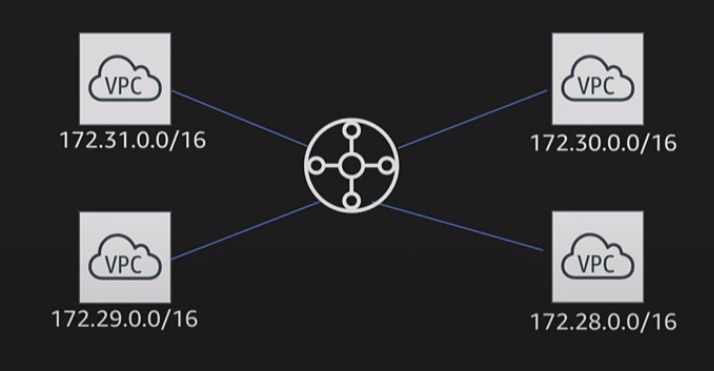

4. AWS Transit Gateway

alt text

  • A network transit hub that simplifies multi-VPC connectivity.
  • Connects multiple VPCs within the same account or across different AWS accounts.
  • Enables centralized routing and security policies, ensuring that inter-VPC traffic remains secure.
  • Supports low-latency and high-bandwidth connections for better performance.

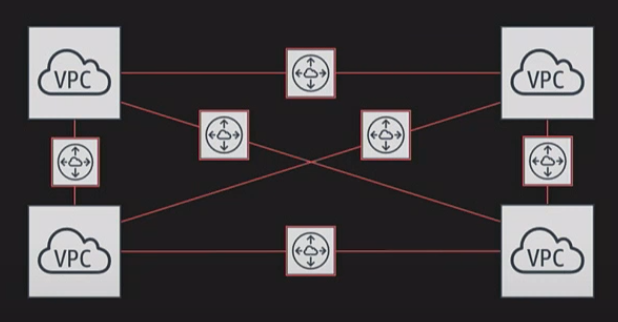

5. VPC Peering

alt text

  • Direct private connection between two VPCs within the same AWS account or across multiple accounts.
  • Uses the AWS internal network for routing, ensuring low-latency and high-speed communication.
  • Security Considerations for VPC Peering:
    • Traffic between peered VPCs does not traverse the public Internet, reducing security risks.
    • No transitive peering – meaning for one VPC (VPC A) to reach another one (VPC C) it cannot traverse through another VPC (VPC B), Transit Gateway is a better solution.

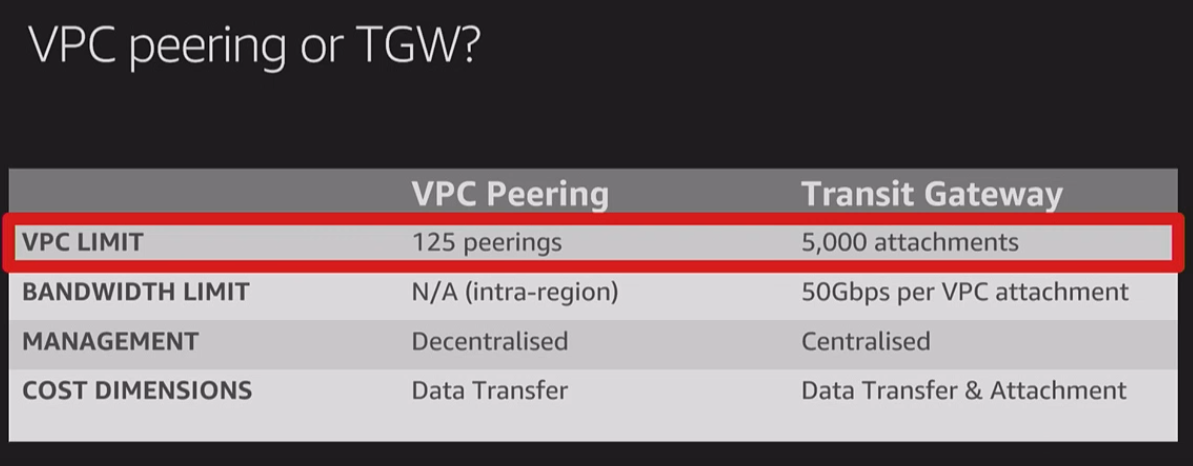

Quick comparisson between VPC Peering and Transit Gateway alt text

Implementing an AWS Network Architecture to Meet Security and Compliance Requirements

alt text

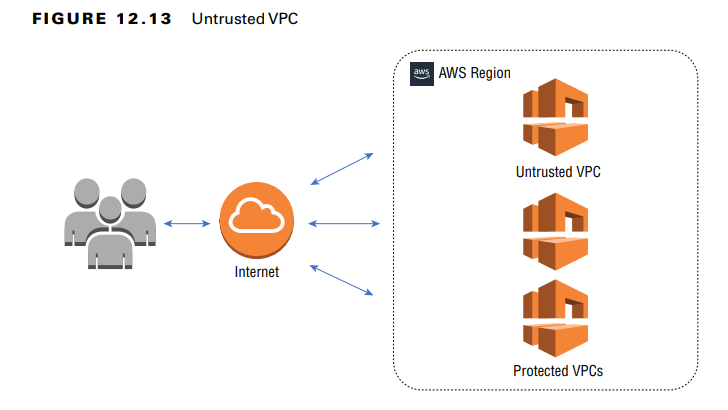

1. Untrusted Network (DMZ Architecture)

  • Also known as a Demilitarized Zone (DMZ), this architecture isolates public-facing resources from the internal network.
  • Typically used for web servers, public APIs, or any service accessible from the Internet.
  • Security is enforced through:
    • Security Groups & NACLs – Restrict access to internal resources.
    • VPC Endpoint Policies – Control which AWS services can be accessed.
    • Data Encryption – Protects data in transit and at rest.
    • The Untrusted VPC acts as an intermediary between the Internet and internal AWS resources.
  • Traffic from the Internet can only access the DMZ but not internal networks, reducing exposure to threats.

alt text

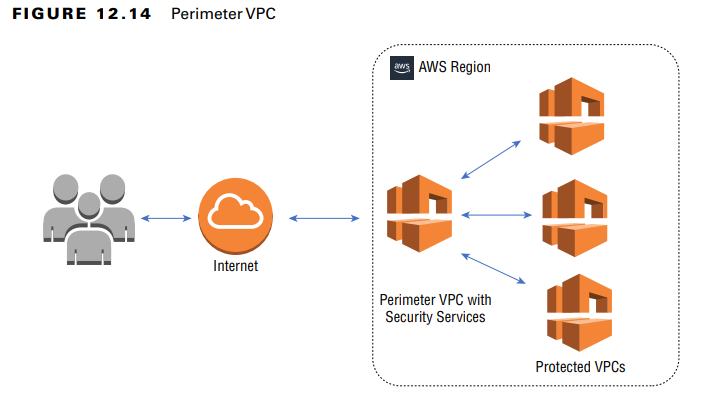

2. Perimeter VPC Architecture

  • A dedicated VPC acts as a security perimeter around other VPCs in the AWS environment.
  • Purpose: Protect the internal network from external threats while controlling access to services.
  • Security controls:
    • AWS Transit Gateway – Connects the perimeter VPC to other VPCs securely.
    • Security Groups & NACLs – Restrict inbound and outbound traffic.
    • VPC Endpoint Policies – Enforce security policies for AWS services.
  • The Perimeter VPC hosts firewalls, intrusion detection systems, and security monitoring tools.

alt text

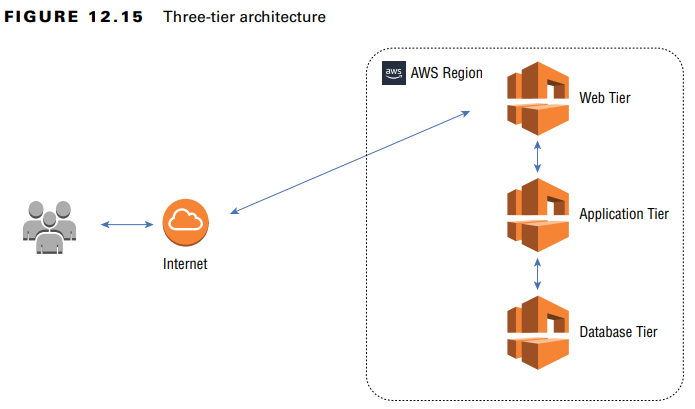

3. Three-Tier Architecture

  • Divides applications into three separate network tiers:
    1. Web Tier (Public Subnet) – Hosts web servers, accessible from the Internet.
    2. Application Tier (Private Subnet) – Handles business logic, communicates with web and database tiers.
    3. Database Tier (Private Subnet) – Stores sensitive data, only accessible by the application tier.
  • Security Measures:
    • Security Groups & NACLs – Restrict traffic flow between tiers.
    • VPC Endpoint Policies – Ensure private communication with AWS services.
    • Data Encryption – Protects sensitive information at rest and in transit.
  • Benefit: Enhances scalability, security, and isolation of application components.

alt text

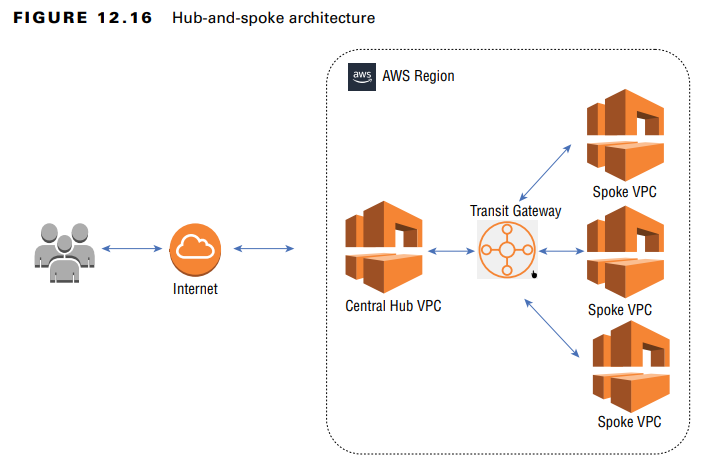

4. Hub-and-Spoke Architecture

  • Uses a central Hub VPC to manage traffic between multiple Spoke VPCs.
  • AWS Transit Gateway is used to connect the Hub VPC to multiple Spoke VPCs securely.
  • Security Controls:
    • Security Groups & NACLs – Control access between Hub and Spoke VPCs.
    • VPC Endpoint Policies – Restrict access to AWS services.
  • Benefits:
    • Simplifies management of multiple VPCs.
    • Improves security by centralizing monitoring and access control.
AE Blog | categories
